Surface coating & finishing
Automated UV roller, spray and curtain coating lines, laminating, wrapping and short-cycle press systems. PURETE - ISO9001, ISO14001, ISO50001 certified.
Our coating systems
PURETE lines are designed as complete production solutions. Modular configuration is possible - we match the system to the material type, lacquer and production volume.

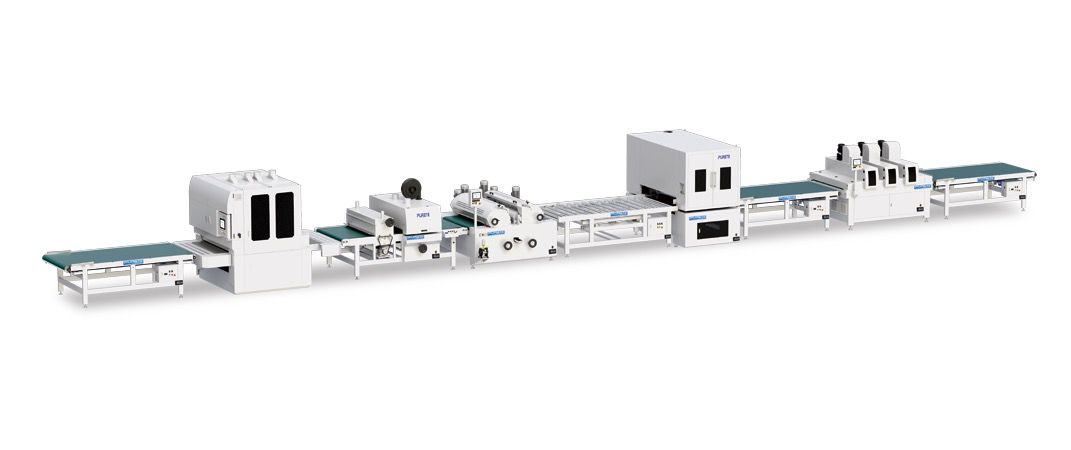

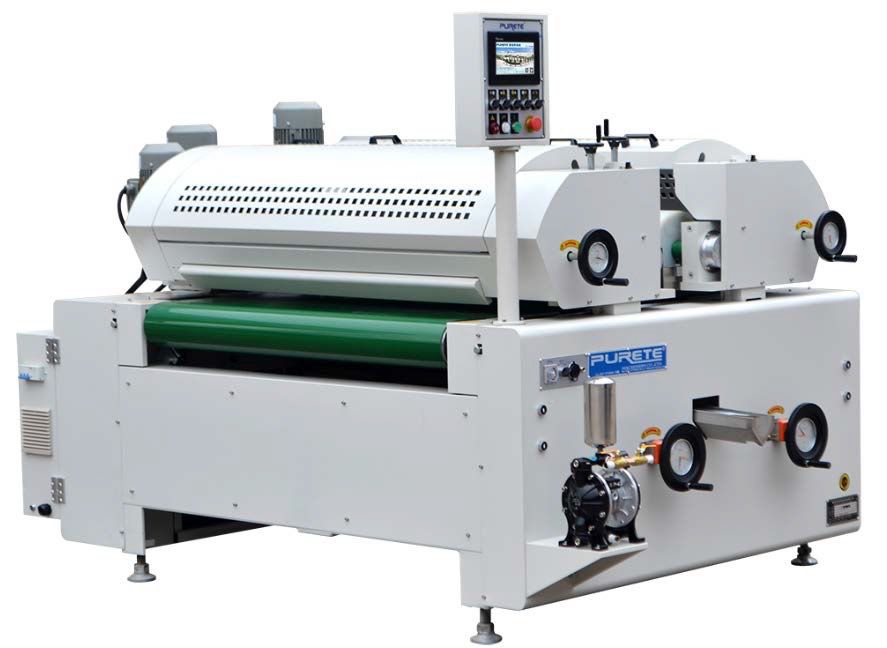

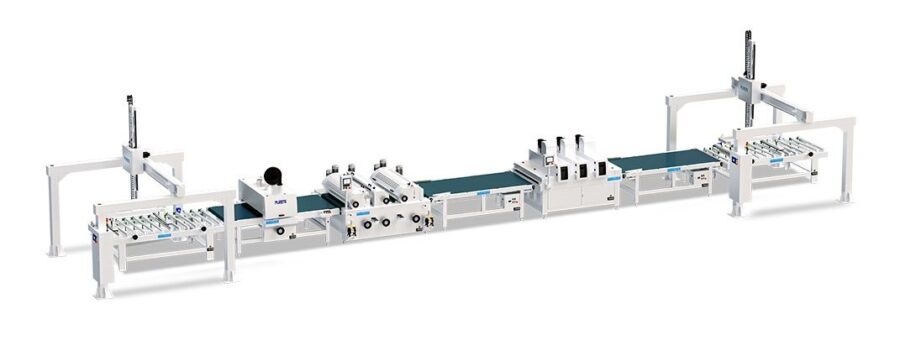

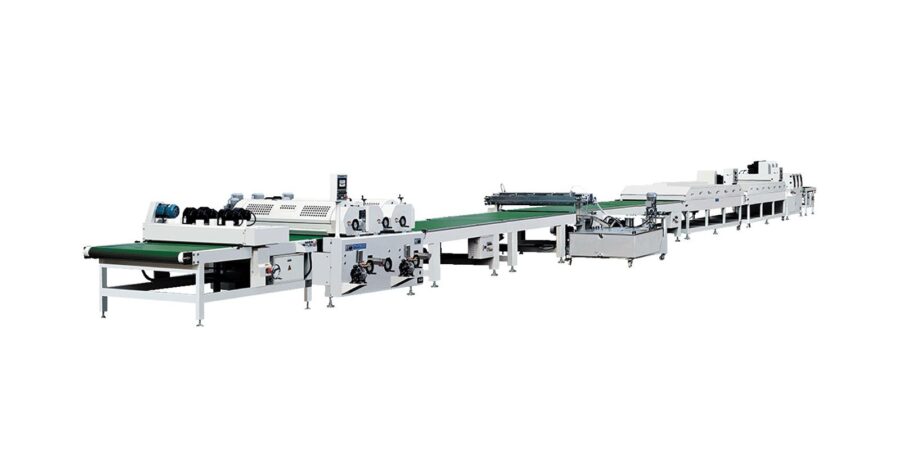

Automatic UV roller coating
Roller System

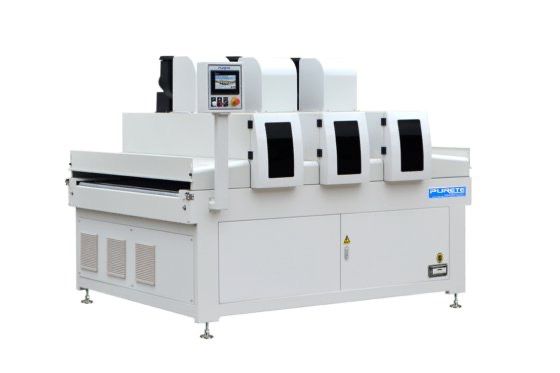

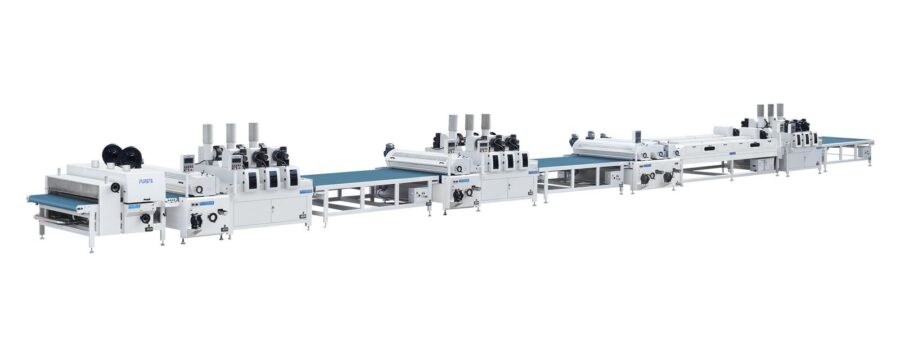

The roller coating line applies UV lacquers and impregnating agents to flat elements. The applicator rollers ensure uniform coating weight, and precise gap adjustment eliminates material waste. Drying via tunnels with forced air and UV lamps.
Specifications
- Lacquers: UV, oil-based, solvent-based
- Materials: MDF, veneer, plywood, glass, metal, plastics
- Coating weight: adjustable (3–30 g/m²)
- Line speed: from 3 to 20 m/min
- Drying options: air, IR lamps, UV lamps (Ga and Hg)
Applications: Furniture factories, lacquered flooring panel production, lacquered fronts.

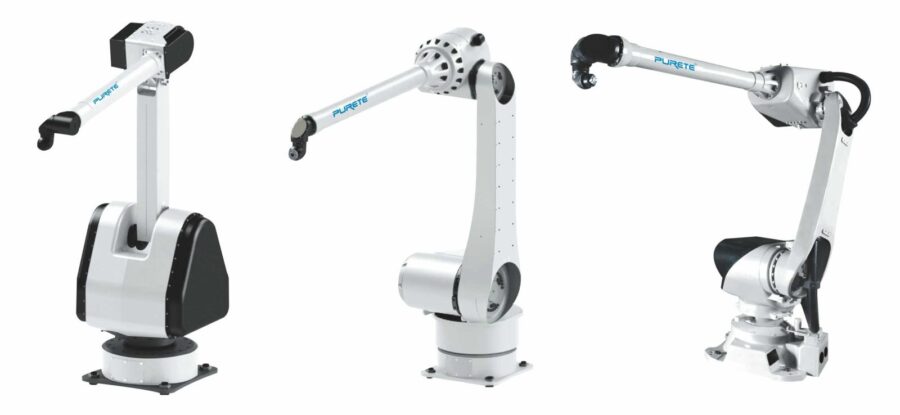

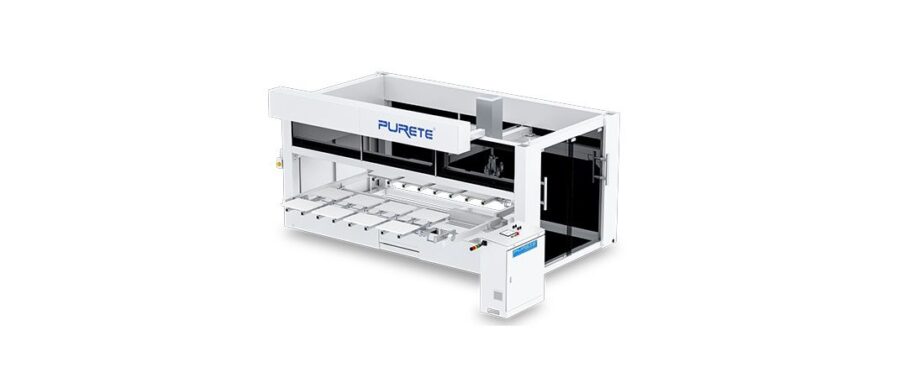

Automatic spray coating for 3D elements
Spray System

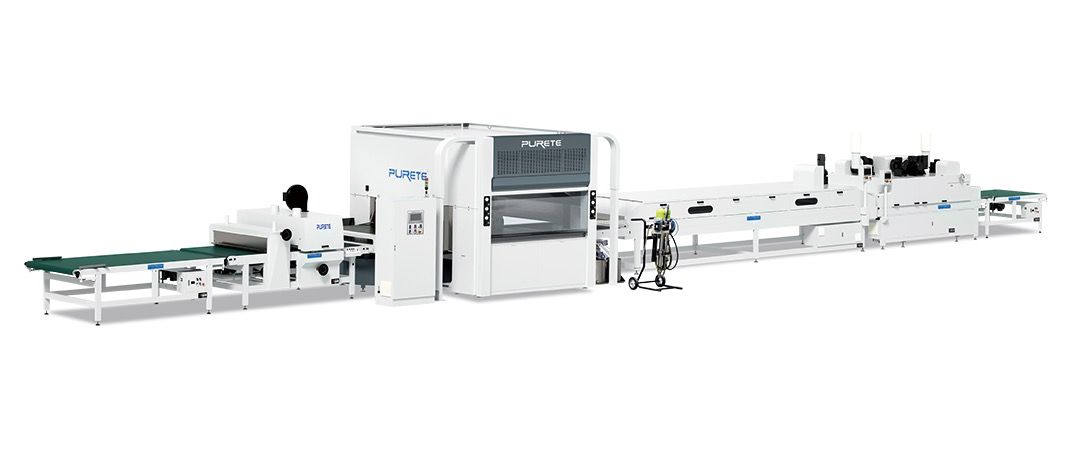

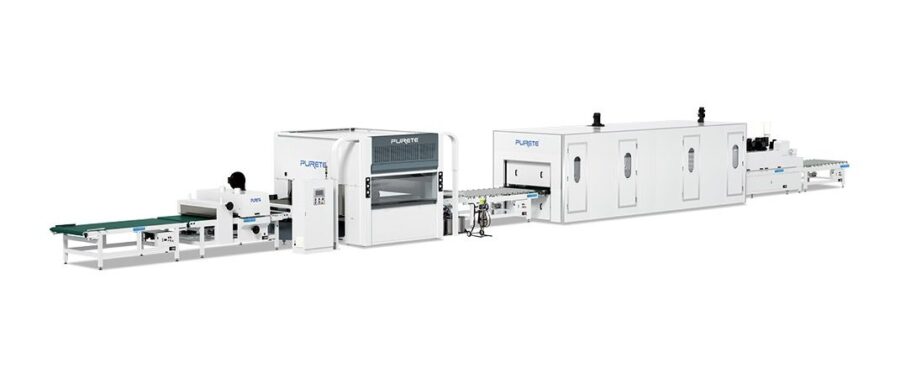

Automated spray lines with a portal or robot arm designed for lacquering elements with irregular shapes - fronts, profiles, doors and details. High lacquer transfer efficiency minimizes waste. Drying via tunnels with forced air and UV lamps.
Specifications
- Curtain width: up to 1350 mm (standard)
- Lacquers: UV (transparent and pigmented)
- Layer thickness: precisely adjustable
- Speed: from 5 to 20 m/min
- Zero waste: excess lacquer returns in the circuit
Applications: Furniture lacquering plants, door and window frame production.

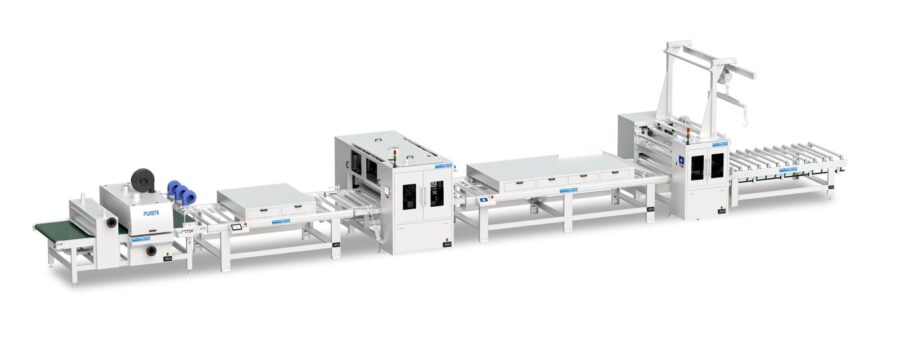

PUR lines for decorative film laminating
Laminating and bonding

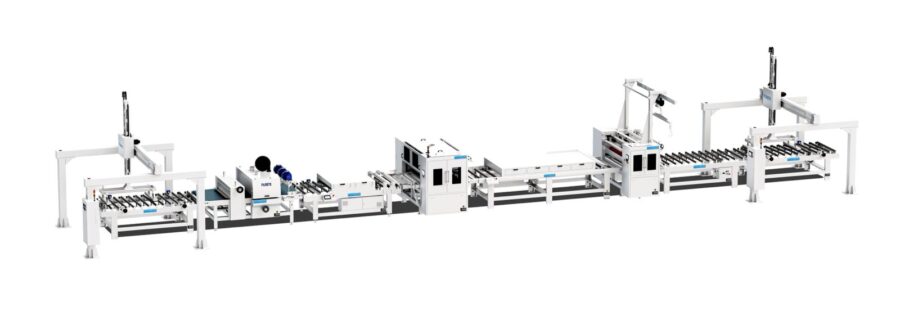

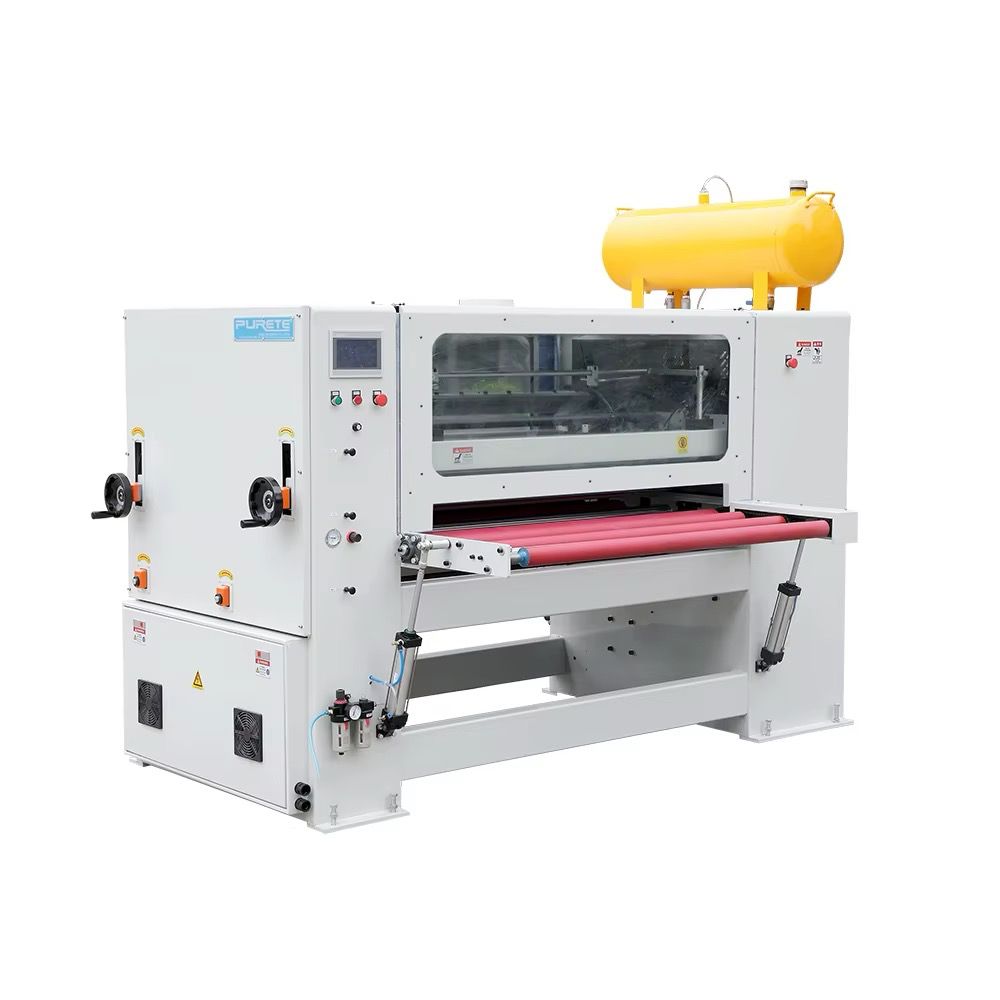

Automatic roller lines for high-capacity laminating of sheet and roll materials such as PET, PETG, PP, PVC, CPL, HPL, aluminum foil and SPC panels. PUR adhesive provides water-resistant bonding, which is required in bathroom and kitchen furniture.
Specifications
- Bonding method: PUR (waterproof)
- Substrate: MDF, chipboard, HDF
- Line speed: up to 10 m/min
- Automatic glue temperature adjustment
Applications: Kitchen fronts, bathroom furniture, wall panels, doors.

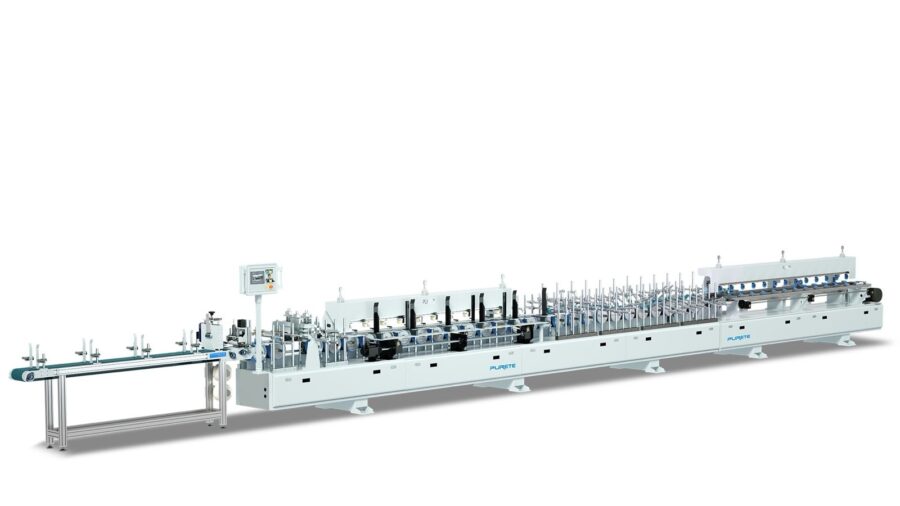

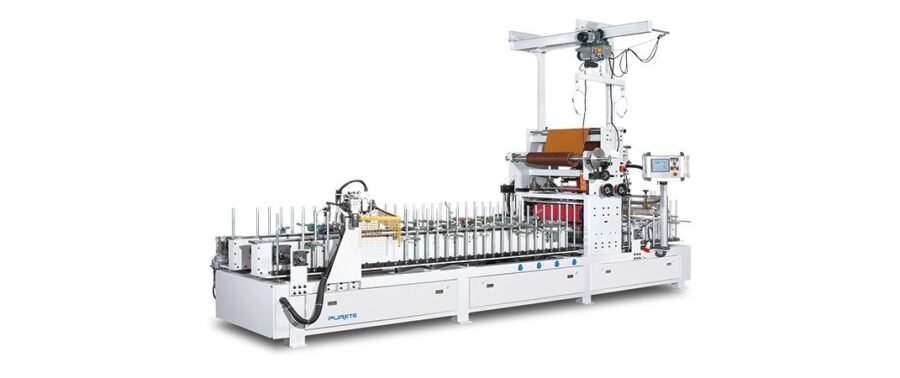

Profile and wide panel wrapping

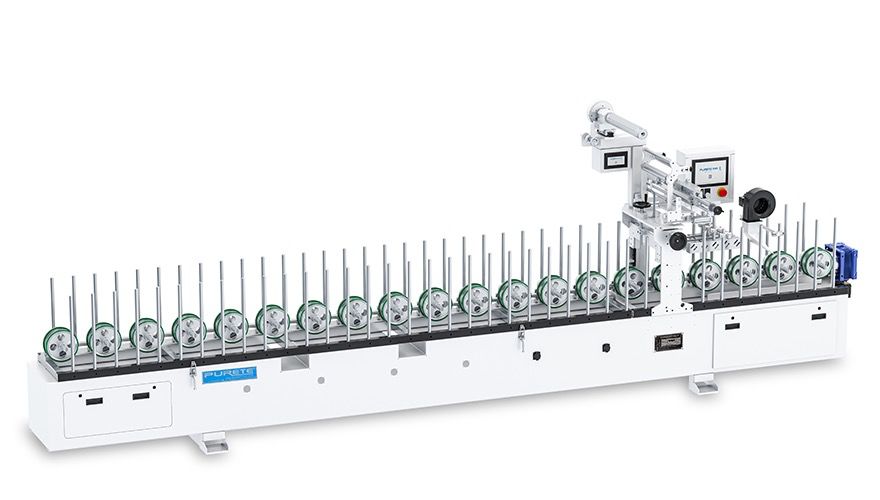

Film wrapping - Wrapping

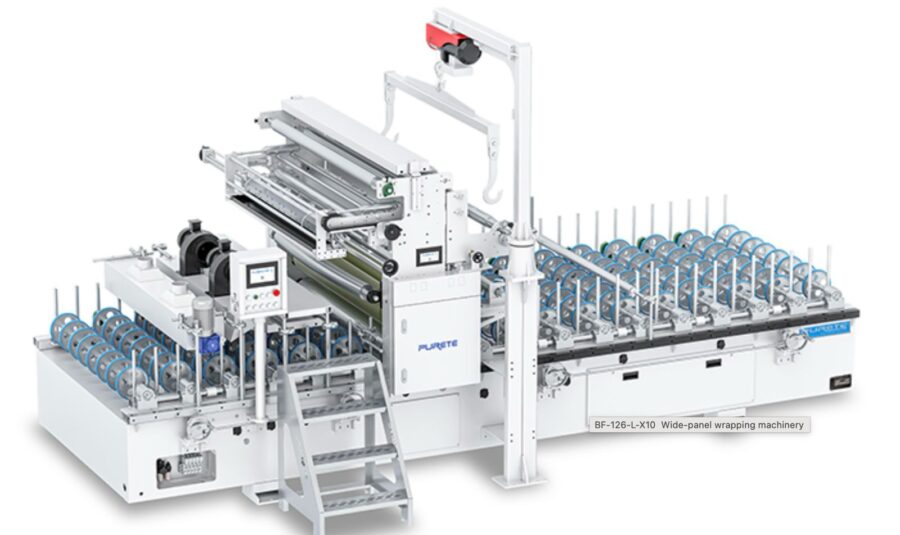

Wrapping machines are ideal for wrapping furniture profiles, decorative panels and architectural elements. The system combines automation and precision, reducing labor costs while maintaining high production quality.
Specifications
- Profiles: strips, frames, profiled fronts, flat elements
- Films: PVC, PP, ABS, veneer
- Line speed: up to 50 m/min
Applications: Production of skirting boards, door frames, aluminium and PVC profiles.

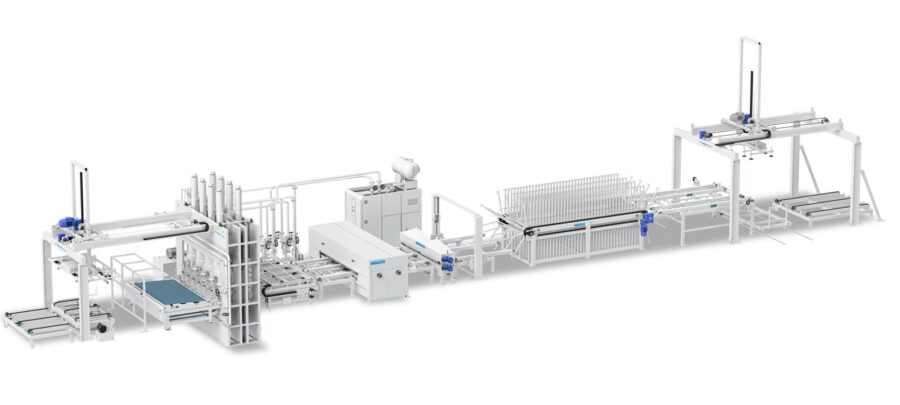

Melamine pressing in a short cycle
Press system - Short Cycle Press

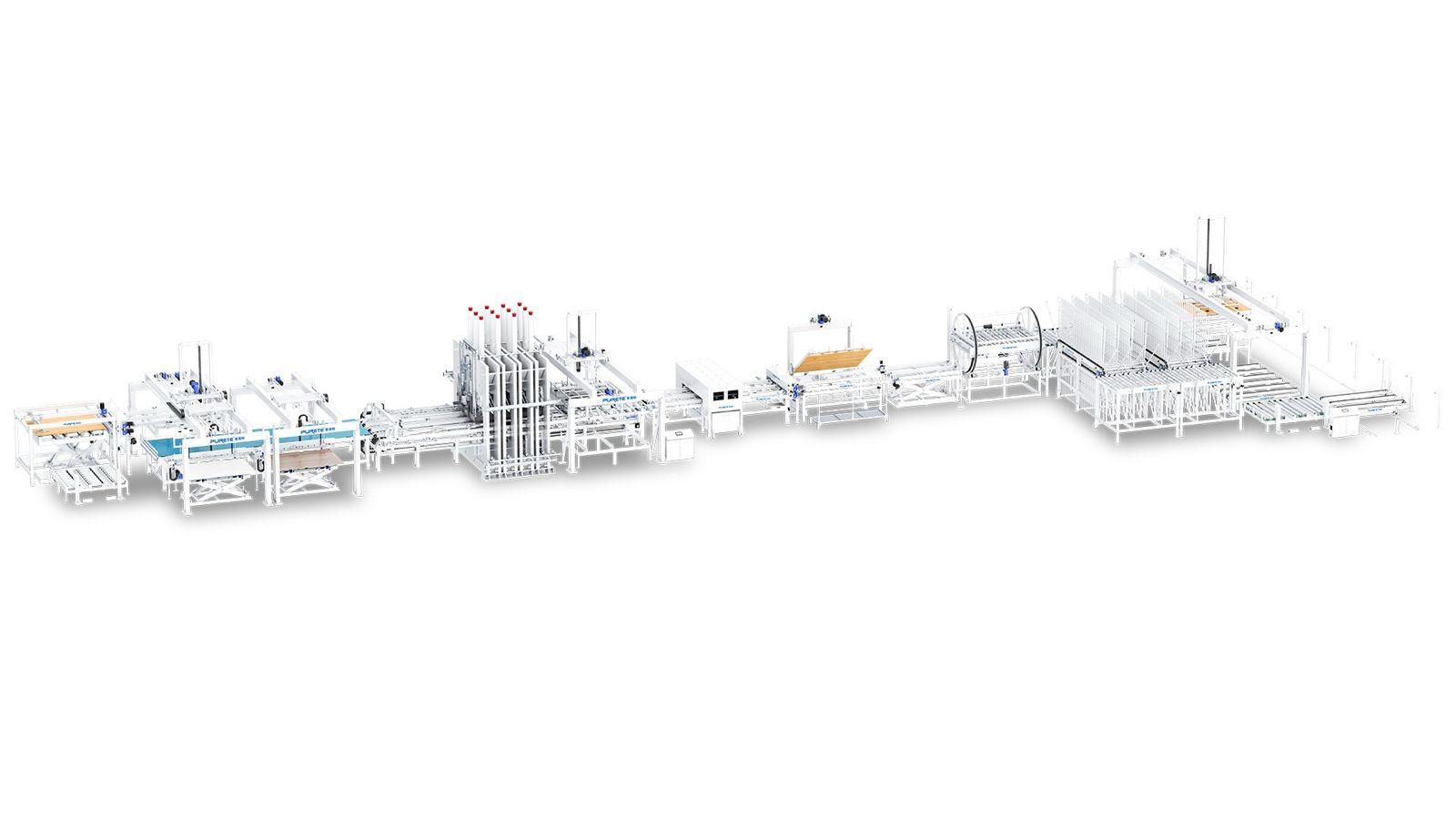

PURETE short-cycle presses are used to apply decorative melamine, HPL and CPL surfaces to chipboard and MDF boards. High temperature and pressure applied for a matter of tens of seconds create durable and scratch-resistant surfaces.
Specifications
- Surfaces: melamine paper, PVC, PET
- Substrate: chipboard, MDF, plywood, HDF
- Cycle time: from 10 to 35 seconds/sheet
- Press force: from 1,200 to 4,700 tons
Applications: Production of decorative boards, kitchen worktops, office furniture elements.
Looking for a complete lacquering line?
PURETE offers lines designed for a specific product, material and volume. Describe your requirements - we'll prepare a configuration proposal.
